Description
Wireless Bluetooth transmission accessories/for walkie-talkies

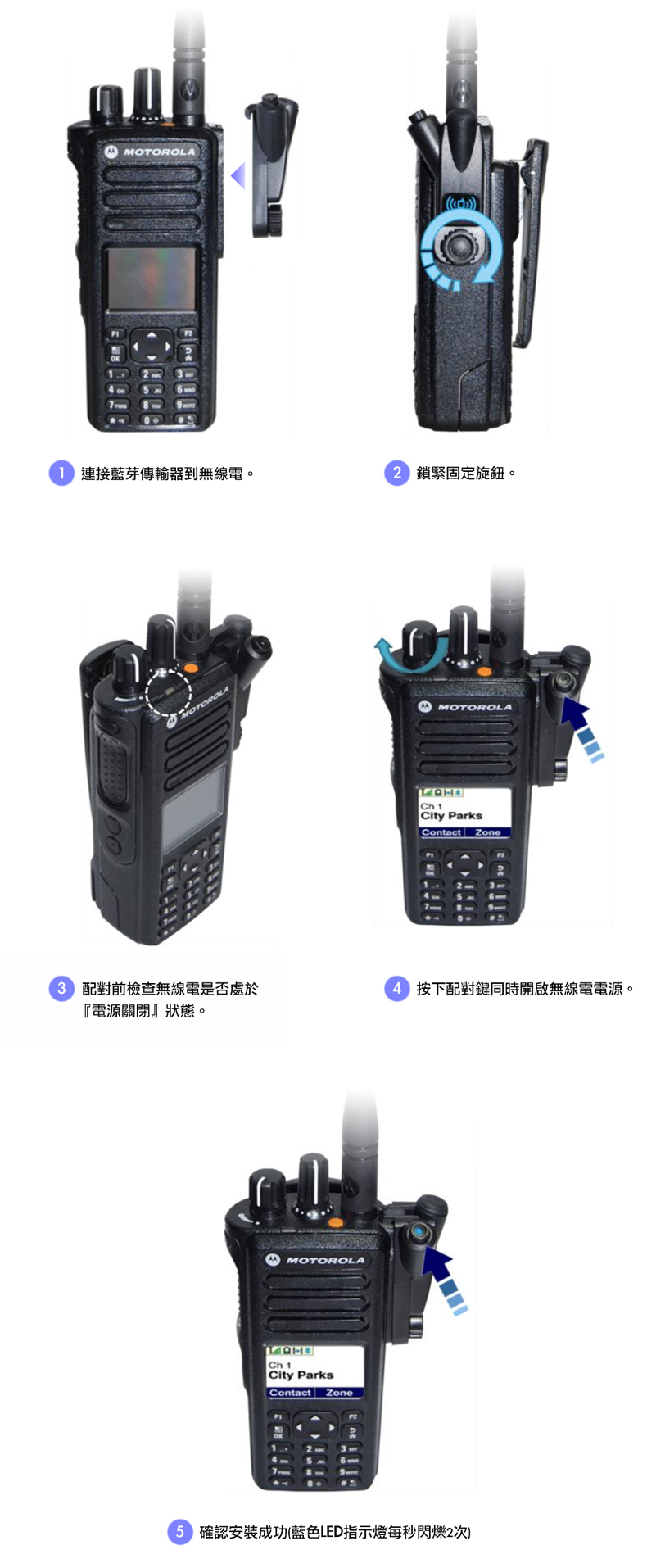

Special Bluetooth adapter for walkie-talkies, which can be connected to Bluetooth devices (such as Bluetooth headsets) after installation
Standard applicable models MOTOROLA:
CBPRO, GP1280, GP140, GP320, GP328, GP329, GP338, GP339, GP340, GP360, GP380, GP640, GP650, GP680, GP960, HT1250, HT1250LS, HT1550, HT1550XLS, HT750, JT1000, MTX82 50, MTX8250LS, MTX850, MTX850LS, MTX9250, MTX950, PR860, PRO5150, PRO5350, PRO5450, PRO5550, PRO5750, PRO7150, PRO7350, PRO7450, PRO7550, PRO7750, PRO9150, PTX700, PTX760, PTX780, TP-100
Compatible models: ICOM, Kenwood, Hytera, Vertex Standard, EADS (Cassidian), Sepura, Harris, Simoco, etc.
Detailed specifications:
- Working temperature: -20°C±2°C~50°C±2°C
- Weight: 30g
- Bluetooth v2.1 + EDR chipset
- Audio input: 350mV rms (max)
- Audio output: 20 mV rms
- Transmit power: 1 dBm (typical)
- Receiver sensitivity: -82 dBm (typ)
- Built-in PTT function, some models have built-in power switch
- Display: two-color LED
- Support HSP/HFP/A2DP/AVRCP/PBAP/SPP/MAP profiles
- DC input: 3.3-9V based on portable radio devices
- DC current: 13 mA (average)
- DC current: 20 mA (transmit)
LED indicator status description:
- No LED → shut down.
- Blinks once per second → Powered on but no accessories paired or connected.
- Flashes twice per second → Bluetooth headset pairing mode.
- Flashes three times per second → Bluetooth PTT pairing mode.
- The light stays on continuously for 3 seconds → successfully paired.
- Flashes every 3 seconds → standby.
